Visualizing Big 12 Basketball program performance

Which teams have reigned supreme?
R
#TidyTuesday
area-plot
small-multiples
Author

Mickey Rafa

Published

December 30, 2022

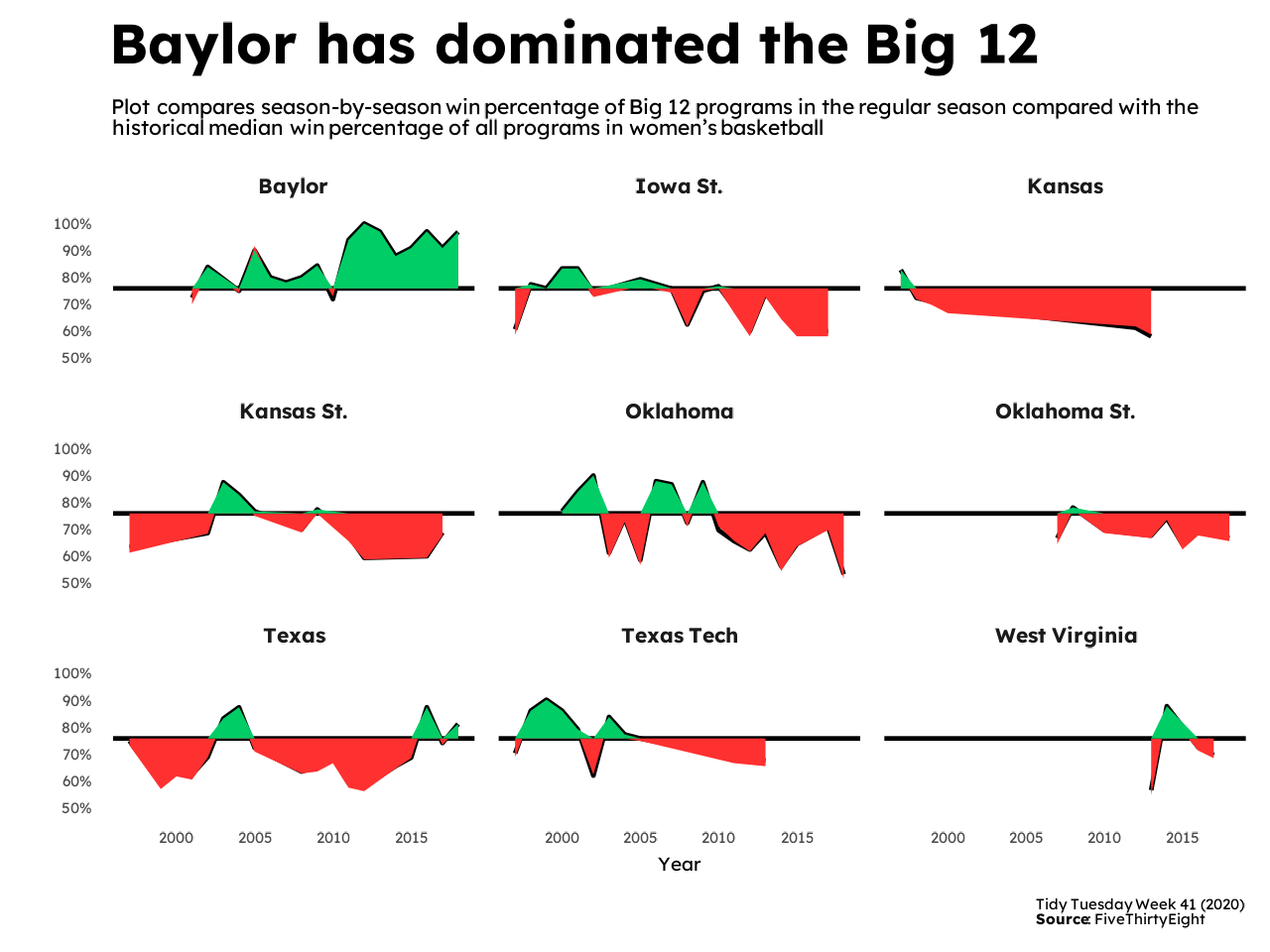

Figure 1: Area plot showing Big 12 women’s basketball programs and their regular season win percentage relative to the historical median percentage for programs over time (1982-2018). Years of data only available if team made the NCAA tournament in that year.

1. Load Packages & Setup

Show code
if (!require("pacman")) install.packages("pacman")
pacman::p_load(
    tidyverse,
    tidytuesdayR,
    ggtext,
    showtext,
    janitor,   #for clean_names()
    scales,
    glue,
    here
)

font_add_google('Lexend')
showtext_auto()

2. Read in the Data

Show code
tt_year <- 2020
tt_week <- 41

tuesdata <- tidytuesdayR::tt_load(tt_year, week = tt_week)

tournament <- tuesdata$tournament

3. Examine the Data

Show code
tournament %>%
  glimpse()
Rows: 2,092
Columns: 19
$ year              <dbl> 1982, 1982, 1982, 1982, 1982, 1982, 1982, 1982, 1982…
$ school            <chr> "Arizona St.", "Auburn", "Cheyney", "Clemson", "Drak…
$ seed              <dbl> 4, 7, 2, 5, 4, 6, 5, 8, 7, 7, 4, 8, 2, 1, 1, 2, 3, 6…
$ conference        <chr> "Western Collegiate", "Southeastern", "Independent",…
$ conf_w            <dbl> NA, NA, NA, 6, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
$ conf_l            <dbl> NA, NA, NA, 3, NA, NA, NA, NA, NA, NA, NA, NA, NA, N…
$ conf_percent      <dbl> NA, NA, NA, 66.7, NA, NA, NA, NA, NA, NA, NA, NA, NA…
$ conf_place        <chr> "-", "-", "-", "4th", "-", "-", "-", "-", "-", "-", …
$ reg_w             <dbl> 23, 24, 24, 20, 26, 19, 21, 14, 21, 28, 24, 17, 22, …
$ reg_l             <dbl> 6, 4, 2, 11, 6, 7, 8, 10, 8, 7, 5, 13, 7, 5, 1, 6, 4…
$ reg_percent       <dbl> 79.3, 85.7, 92.3, 64.5, 81.3, 73.1, 72.4, 58.3, 72.4…
$ how_qual          <chr> "at-large", "at-large", "at-large", "at-large", "aut…
$ x1st_game_at_home <chr> "Y", "N", "Y", "N", "Y", "N", "N", "N", "N", "N", "Y…
$ tourney_w         <dbl> 1, 0, 4, 0, 2, 0, 0, 0, 0, 0, 2, 0, 2, 1, 5, 3, 1, 1…
$ tourney_l         <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 0, 1, 1, 1…
$ tourney_finish    <chr> "RSF", "1st", "N2nd", "1st", "RF", "1st", "1st", "1s…
$ full_w            <dbl> 24, 24, 28, 20, 28, 19, 21, 14, 21, 28, 26, 17, 24, …
$ full_l            <dbl> 7, 5, 3, 12, 7, 8, 9, 11, 9, 8, 6, 14, 8, 6, 1, 7, 5…
$ full_percent      <dbl> 77.4, 82.8, 90.3, 62.5, 80.0, 70.4, 70.0, 56.0, 70.0…

4. Tidy the Data

Show code
tournament <- tournament %>%
  mutate(median_w_l = median(reg_percent, na.rm = TRUE)) %>%
  mutate(above_below_median = ifelse(reg_percent > median_w_l,
                                     reg_percent, median_w_l))

5. Visualization Parameters

Show code
my_theme <- theme(
  # choose font family
  text = element_text(family = 'Lexend', color='black', size=14),
  plot.background = element_rect(color='white'),
  panel.background =  element_blank(),
  axis.ticks = element_blank(),
  panel.border = element_blank(),
  legend.position = 'none',
  strip.background = element_blank())

6. Plot

Show code
big12_viz <- tournament %>%
  filter(conference == 'Big 12',
         !school %in% c('Colorado', 'Missouri', 'Nebraska', 'Texas A&M')) %>%
  ggplot(.,
         aes(x=year,
             y=reg_percent/100)) +
  geom_line() +
  geom_hline(yintercept = tournament$median_w_l[1]/100) +
  geom_ribbon(aes(ymin=median_w_l/100, ymax=full_percent/100),
              fill='firebrick1') +
  geom_ribbon(aes(ymin=median_w_l/100, ymax=above_below_median/100),
              fill='springgreen3') +
  facet_wrap(~ school) +
  ggtitle("Baylor has dominated the Big 12",
          subtitle = "Plot compares season-by-season win percentage of Big 12 programs in the regular season compared with the historical median win percentage of all programs in women's basketball<br>") +
  labs(x='Year',
       y='',
       # y='Win % by season compared to\nhistorical median for all programs\n',
       caption='Tidy Tuesday Week 41 (2020)<br>**Source**: FiveThirtyEight') +
  scale_y_continuous(labels = percent) +
  my_theme +
  theme(plot.title = element_textbox(size=rel(3), face='bold'),
        plot.subtitle = element_textbox_simple(size=rel(1.1), lineheight=.3),
        plot.caption = element_textbox(lineheight=.3),
        strip.text = element_textbox(size=rel(1.1), face='bold'))

7. Save

Show code
# Save the plot as PNG
ggsave(
  filename = glue("tt_{tt_year}_{tt_week}.png"),
  plot = big12_viz,
  width = 4, height = 3, units = "in", dpi = 320
)

# make thumbnail for page
magick::image_read(glue("tt_{tt_year}_{tt_week}.png")) %>%
  magick::image_resize(geometry = "400") %>%
  magick::image_write(glue("tt_{tt_year}_{tt_week}_thumbnail.png"))

8. Session Info

R version 4.4.0 (2024-04-24)
Platform: aarch64-apple-darwin20
Running under: macOS Sonoma 14.6.1

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.0

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: America/Denver
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] here_1.0.1         glue_1.8.0         scales_1.3.0       janitor_2.2.0
 [5] showtext_0.9-7     showtextdb_3.0     sysfonts_0.8.9     ggtext_0.1.2
 [9] tidytuesdayR_1.1.2 lubridate_1.9.3    forcats_1.0.0      stringr_1.5.1
[13] dplyr_1.1.4        purrr_1.0.2        readr_2.1.5        tidyr_1.3.1
[17] tibble_3.2.1       ggplot2_3.5.1      tidyverse_2.0.0    pacman_0.5.1

loaded via a namespace (and not attached):
 [1] gtable_0.3.5      xfun_0.48         httr2_1.0.5       htmlwidgets_1.6.4
 [5] gh_1.4.1          tzdb_0.4.0        vctrs_0.6.5       tools_4.4.0
 [9] generics_0.1.3    curl_5.2.3        parallel_4.4.0    fansi_1.0.6
[13] pkgconfig_2.0.3   lifecycle_1.0.4   farver_2.1.2      compiler_4.4.0
[17] textshaping_0.4.0 munsell_0.5.1     snakecase_0.11.1  htmltools_0.5.8.1
[21] yaml_2.3.10       pillar_1.9.0      crayon_1.5.3      magick_2.8.5
[25] commonmark_1.9.2  tidyselect_1.2.1  digest_0.6.37     stringi_1.8.4
[29] labeling_0.4.3    rprojroot_2.0.4   fastmap_1.2.0     grid_4.4.0
[33] colorspace_2.1-1  cli_3.6.3         magrittr_2.0.3    utf8_1.2.4
[37] withr_3.0.1       rappdirs_0.3.3    bit64_4.5.2       timechange_0.3.0
[41] rmarkdown_2.28    gitcreds_0.1.2    bit_4.5.0         ragg_1.3.3
[45] hms_1.1.3         evaluate_1.0.1    knitr_1.48        markdown_1.13
[49] rlang_1.1.4       gridtext_0.1.5    Rcpp_1.0.13       xml2_1.3.6
[53] rstudioapi_0.17.1 vroom_1.6.5       jsonlite_1.8.9    R6_2.5.1
[57] systemfonts_1.1.0

9. Github Repository
